Description:

- Hold-to-run control function: the button must be kept pressed
until the desired opening or closing is reached.

- Suitable with domotic systems.

- It has 2 adjustment rings (0-10 sec) to manage
the offset of the leaves in opening and closing.

- Supply and control buttons 230VAC.

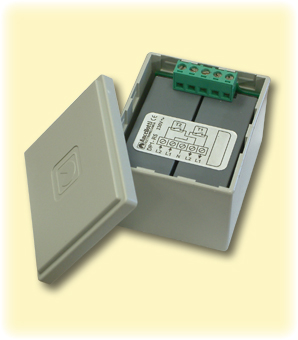

- The control unit can be housed in a flush-mounted box or
alternatively inside the shutter-closer.

- Circuit board dimensions: 46 x 60 x h38.

- External dimensions: 55 x 67 x h42.

Control unit diagram DP1-R5 PDF [ 119 Kb ]
