- Strenght and reliability paired with an harmonious design-

- Aluminium box with a supporting structure (6 x 5 cm) -

- Variable length lever and sinusoidal runner -




- Two soundproofed gearmotors (33 dB) with a syncronized movement (230 Volt) -

- Mechanic windproof friction and security manual move -

- It can be integrated with domotic systems and at seamless UPS groups -

- Security electric-lock with an incorporated anti-intrusion system-

- Steel mechanism with anticorrosive treatement -



* * *

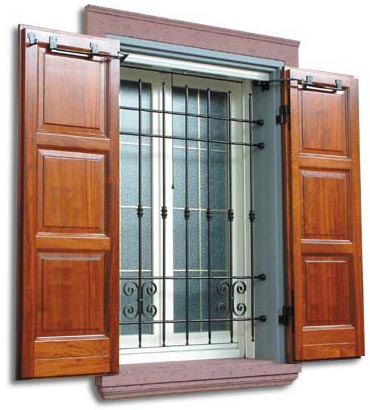

THE S/A MODEL
has been studied to move shutters and windows,
it was born when aesthetic and functionality met because it
offers a limited bulkiness and a great versatility of usage.

Thanks to his small dimensions (6 x 5 cm),
it can be easily installed even on shutters already existing
without changing the aesthetic
and without modifing walls or shutters.

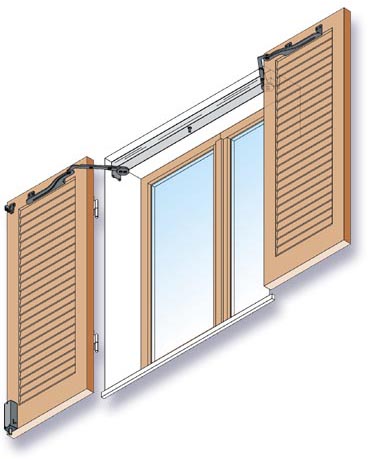

  Installation under architrave





It can be installed under the lintel
or on the windowsill, you can also hide the automatism into
the lintel using his aluminium duct.



Installation into the lintel


A quiet and regular movement,
with the possibility of stopping the shutters in any position;
it is provided also of a manual move
for emergency cases.

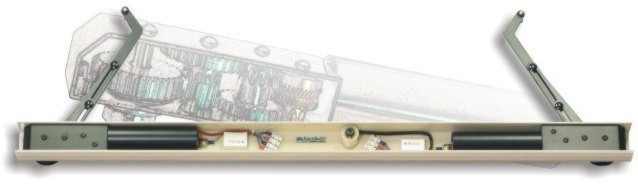

THE SHUTTER-CLOSER is made by two gearmotors (230 Volt)
with steel mechanisms exempted from maintenance,
internally assembled into an aluminium box
extruded pre-painted.

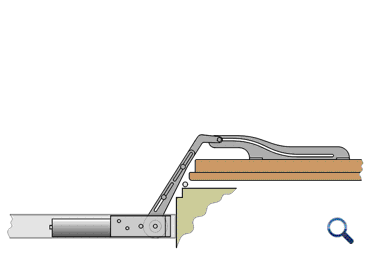

The variable length lever and the sinosidal guide
allows an easy adaptation to the different types
of shutter-closers and so, to a better functioning.

The security mechanic friction makes the automatism safier
against tampering and also against big gusts
of wind.

All the steel components are subjected at a anticorrosive treatment.
All this parts form a solid structure as a supporting monoblock,
already prepared for the installation and of the measures requested.



The shutter-closer is customizable for
other kinds
of shutters and hinges.

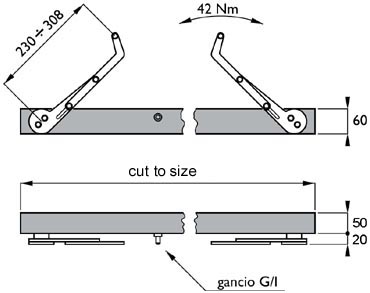

Dimensions

Shutter-closer S/A DWG - DXF [ 131 Kb ]







For the movement of the shutters you can use one of this type of control:

- Syncronized with “
Control Unit C/C” with an automatic functionality;

the first one allows you to open and close one shutter-closer
or all of your automatisms at the same time around the house,
thanks to an electric control; the Control unit C/C can be also
paired with the receiver “RX2
and his relative remote controller “TX2”.


- Syncronized with “
Control Unit DP1” with an Hold-to-run functionality;

- Hold-to-run switch (divided in two double buttons).



The electro-locks (provided under request), increase the resistence of the closure, against any attemps of manual tampering.
There are two solutions: the
G/I (situated inside the aluminium box),
or the
G/E (fixed on the bottom of the shutter).

Hook G/I

Hook G/E





Integrity

Ancellotti automatisms are extremely integrated in the domotic technologies of the house;


they can also be linked to seamless UPS groups, whenever it is necessary the fuctioning system even without electricity.


Photobook S/A


Accessories


Depliant S/A

PDF
[ 478 Kb ]


Shutter-closer S/A


DWG - DXF
[ 131 Kb ]

Tecnical informations about the S/A model:

Powered

230 V 50 Hz

Absorption

0,45 A

Couple

42 Nm

Working time for 180°

13 sec

Max. couple of irreversibility

90 Nm

Noise

33 dB
