THE SHUTTER-CLOSER S/E
has been studied to move shutters and windows.

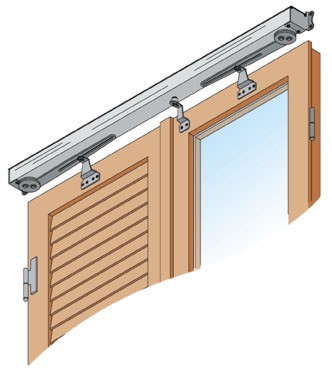

The installation of this model is planned
on the wall over the window so
is particulary indicated when there
are obstacles like grates or mosquito nets.

It is possible to easily use this shutter-closer
also on shutters and windows already existing
without modifing the wall or the shutters.

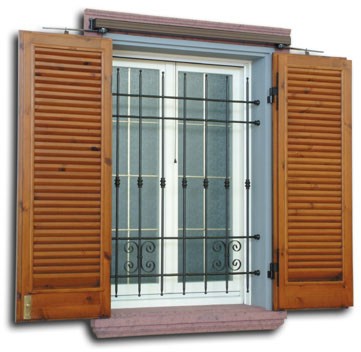

  Installation ont the outsider wall - for shutters



The armonic design and the small dimensions
(60 x 50 mm) don't change the aesthetic of the automatism.

A quiet and regular movement,
with the possibility of stopping the shutters in any position;
it is provided also of am manual move for emergency cases.

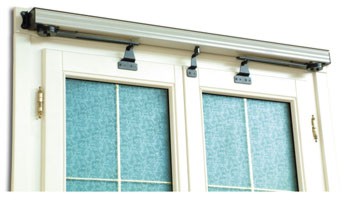

Installation on the inner wall - for windows

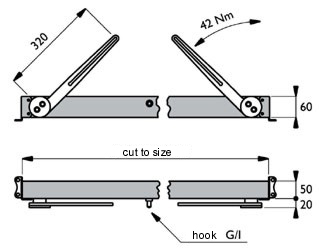

Reference measurements


The shutter-closer is customizable for other kinds of shutters and hinges.

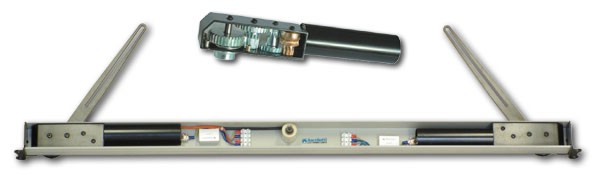

THE SHUTTER-CLOSER is made by two gearmotors(230Volt)
with steel mechanisms exempted from maintenance,
internally assembled to an alumunium box
extruded pre-painted.

All the steel components are subjected at
an anticorrosive treatment. The set of the parts
forms a solid structure as a supporting monoblock,
already prepared for the installation and of the measures requested.

The security mechanic friction makes the automatism
safier against tampering and also against big gusts of wind.

For the movement of the shutters you can use one
of this type of control:

- Syncronized with
Control Unit C/C with an automatic
functionality;

the second one allows you to open and close one
shutter-closer or all of your automatisms of the house
at the same time, thanks to an electric
control; the Control Unit C/C can be also paired
with the receiver “RX2
and his relative remote controller “TX2”.


- Syncronized with “
Control Unit DP1” with an Hold-to-run functionality;

- Hold-to-run switch (divided in two double buttons).



The electro-locks (provided under request), increase the resistence of the closure against any attemps of manual tampering.
There are two solutions: the hook
G/E inferior and the hook G/I superior.

Hook G/E
for shutters and windows.

Hook G/I
only for windows.





Integrity

Ancellotti automatisms are extremely integrated in the domotic technologies of the house;


they can also be linked to seamless UPS groups, whenever it was necessary the functioning system even without electricity.


Accessories


Depliant S/E

PDF
[ 309 Kb ]

Technical informations about the S/E model:

Powered 230 V 50 Hz
Absorption 0,45 A
Couple 42 Nm
Working time for 180 18 sec
Max. couple of irreversibility 90 Nm

Noise

33 dB
